Ultra Pump Switch Sr.
UPS-01
$200.00
UPS-01
$200.00
Most boaters are guilty of it,
we buy expensive bilge pumps and connect
them to cheap, poorly made float switches.
Most failures are the switch, NOT the pump.
Ultra Safety Systems pump switches work
and best of all, they keep working.
we buy expensive bilge pumps and connect
them to cheap, poorly made float switches.
Most failures are the switch, NOT the pump.
Ultra Safety Systems pump switches work
and best of all, they keep working.
ULTRA PUMPSWITCH SR - Lifetime Warranty
Automatic Bilge pump operation (1 1/4" differential)
Plus isolated high water alarm switch (at 3") built-in
Specify 12V 15A U.L. or 24/32V 10A U.L.(30A relay)
Alarm circuit has Normally Open or Closed contacts
(current limited to 100 mA max). Specify N.O. or N.C.
(Does not include pump)
Automatic Bilge pump operation (1 1/4" differential)
Plus isolated high water alarm switch (at 3") built-in
Specify 12V 15A U.L. or 24/32V 10A U.L.(30A relay)
Alarm circuit has Normally Open or Closed contacts
(current limited to 100 mA max). Specify N.O. or N.C.
(Does not include pump)
ULTRA PUMPSWITCH JR - 5 Year Warranty
Automatic bilge pumpswitch
6 1/4 inch high and 2 1/2 inch diameter
(1 1/4 inch ON/OFF differential)
Specify 12V at 15 A U.L. or 24/32V at 10 A U.L
(30A relay)
(Does not include pump)
Automatic bilge pumpswitch
6 1/4 inch high and 2 1/2 inch diameter
(1 1/4 inch ON/OFF differential)
Specify 12V at 15 A U.L. or 24/32V at 10 A U.L
(30A relay)
(Does not include pump)
Ultra Pump Switch Jr.
UPS-02
$170.00
UPS-02
$170.00
ULTRA ALAM SWITCH ONLY - 5 Year Warranty
Normally Open or Normally Closed contact
for high water alarm system
with Magnetic Test Switch
Limited to 100mA max. (mini version only)
(Does not include signaling device)
Normally Open or Normally Closed contact
for high water alarm system
with Magnetic Test Switch
Limited to 100mA max. (mini version only)
(Does not include signaling device)
Ultra Alarm Switch Only
UPS-03
$150.00
UPS-03
$150.00
ULTRA P.S. HiDIFFERENTIAL - 5 Year Warranty
Automatic bilge pumpswitch
1" greater difference in on/off set points than UPS-02
(2 1/4 inch differential)
Eliminates cycling associated with long
discharge lines and deep bilge sumps
Specify 12V or 24/32V
(Does not include pump)
Automatic bilge pumpswitch
1" greater difference in on/off set points than UPS-02
(2 1/4 inch differential)
Eliminates cycling associated with long
discharge lines and deep bilge sumps
Specify 12V or 24/32V
(Does not include pump)
Ultra PS HiDifferential
UPS-04
$170.00
UPS-04
$170.00
ULTRA PUMPSWITCH MINI - 5 Year Warranty
Automatic bilge pumpswitch
4" high, 1 3/4" diameter, 3/4" on/off differential
Specify 12V or 24/32V (40A relay)
20A continuous pump load
with Magnetic Test Switch
(Does not include pump)
Automatic bilge pumpswitch
4" high, 1 3/4" diameter, 3/4" on/off differential
Specify 12V or 24/32V (40A relay)
20A continuous pump load
with Magnetic Test Switch
(Does not include pump)
Ultra Pump Switch Mini
UPS-06
$170.00
UPS-06
$170.00
Encapsulated relay, Self cleaning clog proof design,
Environmentally safe (contains no mercury),
Power on indicator, Clamp for easy mounting,
Magneticly operated reed switch design,

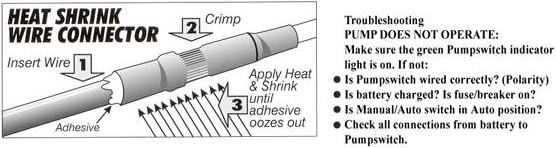

Adheasive filled heat shrink wire connectors.
Environmentally safe (contains no mercury),
Power on indicator, Clamp for easy mounting,
Magneticly operated reed switch design,
Adheasive filled heat shrink wire connectors.
The image to the right is 1 of 4 UPS-02 pump switches
(attached to a Rule2000 pump) that we have on our own boat.
(attached to a Rule2000 pump) that we have on our own boat.

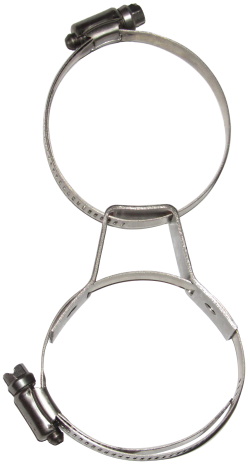

KLEVR KLAMP
The KLEVR KLAMP is a unique little bracket
that can join 2 objects together with each unit
held by an ordinary large hose clamp with the
2 hose clamps joined by the KLEVR KLAMP.
(The hose clamps are NOT included)
This is the bracket that is included with each
pump switch so it can be attached to the pump
but it can be used in many other applications.
By bending the ears and using the screw holes
it can also be used as a mounting bracket.
The KLEVR KLAMP is a unique little bracket
that can join 2 objects together with each unit
held by an ordinary large hose clamp with the
2 hose clamps joined by the KLEVR KLAMP.
(The hose clamps are NOT included)
This is the bracket that is included with each
pump switch so it can be attached to the pump
but it can be used in many other applications.
By bending the ears and using the screw holes
it can also be used as a mounting bracket.
KLEVR KLAMP
(Hose clamps are not included)
$7.00
(Hose clamps are not included)
$7.00
Ultra Safety
Battery Powered Alarm
$220.00
Battery Powered Alarm
$220.00
ULTRA BATTERY POWERED ALARM
(Extra Loud) 103 db high water alarm.
Test, mute and red LED indicator light.
For complete alarm package,
use with UPS-01 or UPS-03 (normally open).
Operating time-40 hours.
Uses two 9 volt batteries (Not included)
Choose RECESSED or SURFACE mount.
(Extra Loud) 103 db high water alarm.
Test, mute and red LED indicator light.
For complete alarm package,
use with UPS-01 or UPS-03 (normally open).
Operating time-40 hours.
Uses two 9 volt batteries (Not included)
Choose RECESSED or SURFACE mount.
RECESSED SURFACE
